OT80F3 - 1

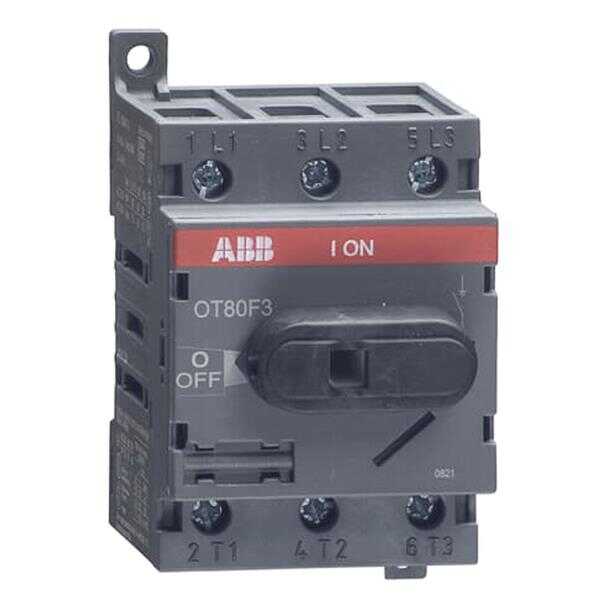

OT80F3

Stok Kodu : 1SCA105798R1001
2.395,00 TL + KDV
718,50 TL + KDV
Kredi kartına 0 taksit imkanı

Tükendi

Gelince Haber Ver
Listeye Ekle
Fiyat Alarmı

AÇIKLAMA:

Genel bilgi

Genişletilmiş Ürün Tipi:OT80F3

Ürün kimliği:1SCA105798R1001

EAN:6417019397016

Boyutlar

Ürün Net Genişliği:52,5 mm

Ürün Net Yüksekliği:91.5 mm (milimetre)

Ürün Net Derinliği / Uzunluğu:72.5 mm (milimetre)

Ürün Net Ağırlığı:0,25 kg

Teknik

Anma Çalışma Akımı AC-21A (I e ):

(380 ... 415 V) 80 A

(500 V) 80 A

(690 V) 80 A

Anma Çalışma Akımı AC-22A (I e ):

(380 ... 415 V) 80 A

(500 V) 80 A

(690 V) 80 A

Anma Çalışma Akımı AC-23A (I e ):

(380 ... 415 V) 75 A

(500 V) 58 A

(690 V) 20 A

Nominal Çalışma Gücü AC-23A (P e ):

(220 ... 240 V) 22 kW

(400 ... 415 V) 37 kW

(500 V) 37 kW

(690 V) 18,5 kW

Geleneksel Serbest Hava Termal Akımı ( Ith ): q = 40 ° C 80 A

Konvansiyonel Termal Akım (I ):Tamamen Kapalı 80 A

Anma Darbe Dayanım Gerilimi (U imp ):8 kV

Anma Yalıtım Gerilimi (U i ):acc. IEC / EN 60664-1 750 V'a

Anma Çalışma Gerilimi:Ana Devre 750 V

Anma Kısa Devre Yapma Kapasitesi (I cm ):(690 V) 2,1 kA

Kısa Süreli Anma Dayanım Akımı (I cw ):1 s 1,5 kA için

Güç kaybı:Kutup başına 4,5 W Nominal Çalışma Koşullarında

Kirlilik derecesi:3

Kulp Tipi:Topuz

Tutamak ve mil dahil değildir

Anahtarlar Çalışma Mekanizması:Anahtarın Üstündeki Mekanizma

Aşamalar Arası Mesafe:Standart

Hat Terminallerinin Konumu:

Yukarıdan İçeri - Aşağıdan Dışa

Alttan İçeri - Üstten Dışarı

Çalışma modu:Önden kumandalı

Standartlar:IEC 60947-3 / UL 508 / CSA C22.2 No. 14

Özel fonksiyonlar:Hayır

Montaj tipi:Taban montajı

Kutup sayısı:3

Kablo Kesiti:Cu 1,5 ... 35 mm²

Koruma derecesi:Ön IP20

Terminal Tipi:Vidalı Terminaller

Sıkma Torku:acc. IEC 60947-1 2 N · m

Mekanik Dayanıklılık:20000

Teknik UL / CSA

Maksimum Çalışma Gerilimi UL / CSA:600 V

Beygir Gücü Derecesi UL / CSA:

(110 ... 120 V AC) Tek Faz 2 Hp

(240 V AC) Tek Faz 10 Hp

(440 ... 480 V AC) Tek Faz 20 Hp

(550 ... 600 V AC) Tek Faz 20 Hp

(220 ... 240 V AC) Üç Fazlı 20 Hp

(440 ... 480 V AC) Üç Fazlı 40 Hp

(550 ... 600 V AC) Üç Fazlı 40 Hp

Amper Derecesi UL / CSA:80 bir

Sıkma Torku UL / CSA:18 inç · lb

Çevre

RoHS Durumu:2011/65 / EU sayılı AB Direktifi uyarınca

Çevresel Bilgi:1SCC301183D0201
