GENEL BİLGİ
EK BİLGİLER
ABB Type Designation:M2BAX 132SME 4
Altitude:1000 m
Ambient Temperature:40 °C
Bearing:6208-2Z/C3
Bearing NDE:6208-2Z/C3
Direction of Rotation:Both sides Gross Weight:82 kg
IC Class:IC411
IE Class Data (50 Hz):IE Class IE3
IE Class Data (60 Hz):IE Class IE3
Full Load (100%) 91.7 %
Partial Load (75%) 91.7 %
Partial Load (50%) 90.8 %
IM Class:IMB5 IM3001
IP Class:IP55
Insulation Class:ICLF
Number of Poles (High):4

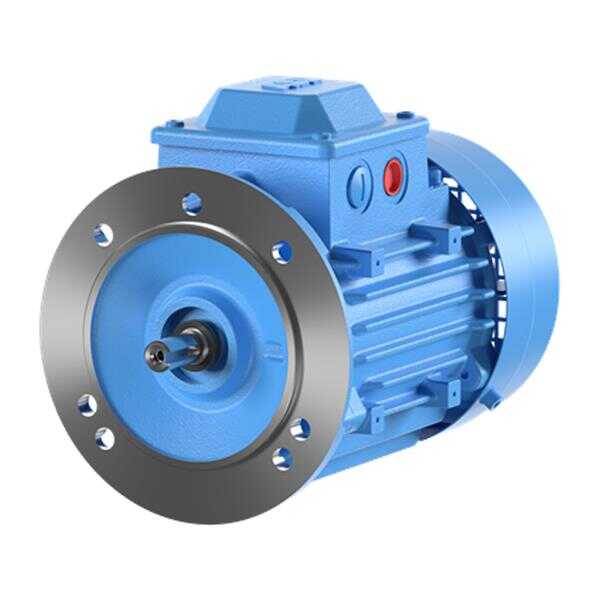

Product Name:3-Phase squirrel cage motor
Product Net Weight:77 kg
Product Type:EBA3__M2BAX_CI
Temperature Class Default:--
Terminator Box Location:D-End top
Two Speed Motor:No
Type of Duty:S1
Voltage Code:S
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
